CPAC – Cold Plate Air Cooled Heater/Cooler

Fast, precise, stable heating and cooling for your workstation

A highly compact fully integrated solution enabling you to control your reaction precisely and reach desired temperatures quickly.

Peltier Modules deliver a highly effective solution for controlling the reaction of biological and chemical samples. They enable energy-efficient, rapid and precise temperature changes. It’s the ideal technology when you need fast, precise and stable temperature curves. INHECO have been designing and providing Peltier based solutions for more than 20 years and have a range of devices that address the needs of our customers.

Choose from four versions of the INHECO CPAC (cold plate air cooled) heater/coolers to work with your liquid handling workstation and application needs.

SMALL OR SMALLER

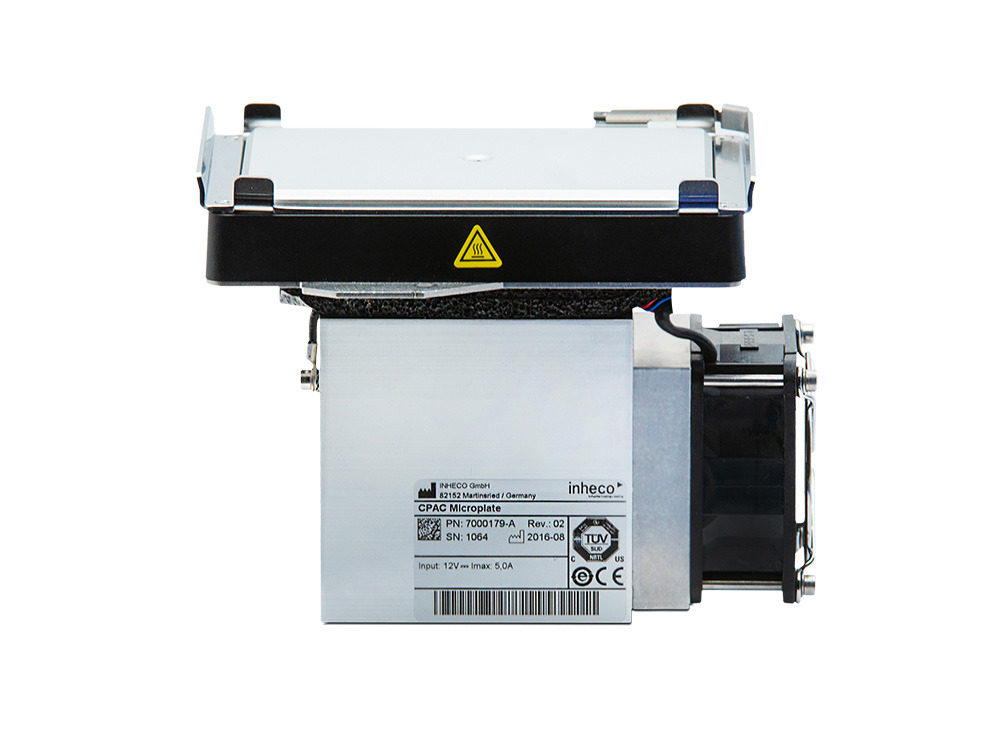

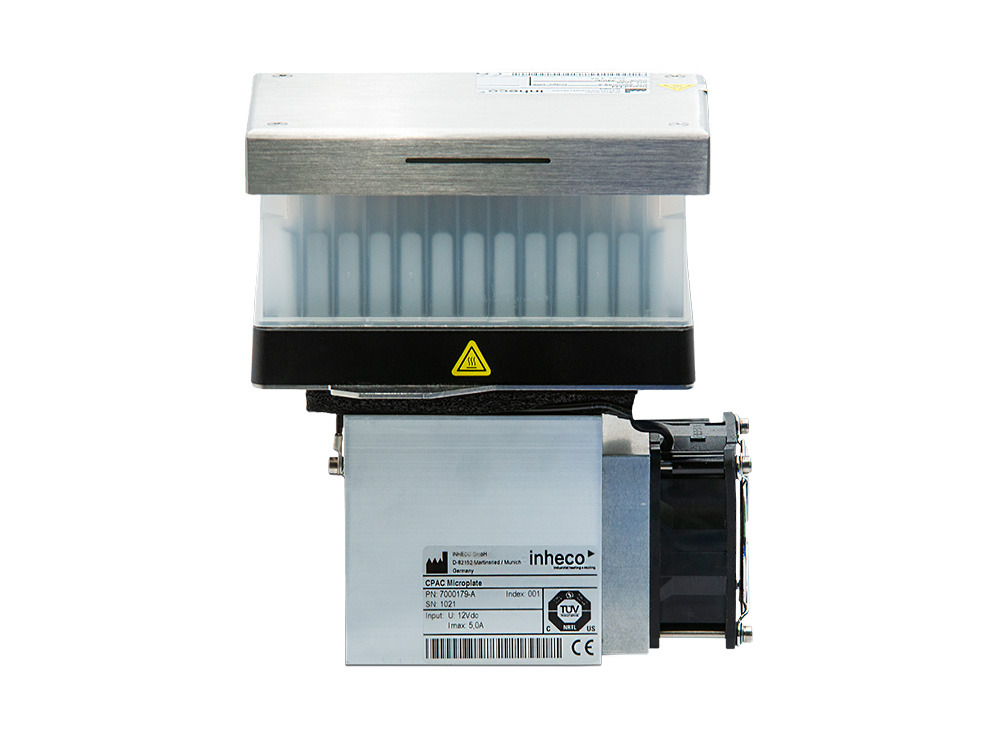

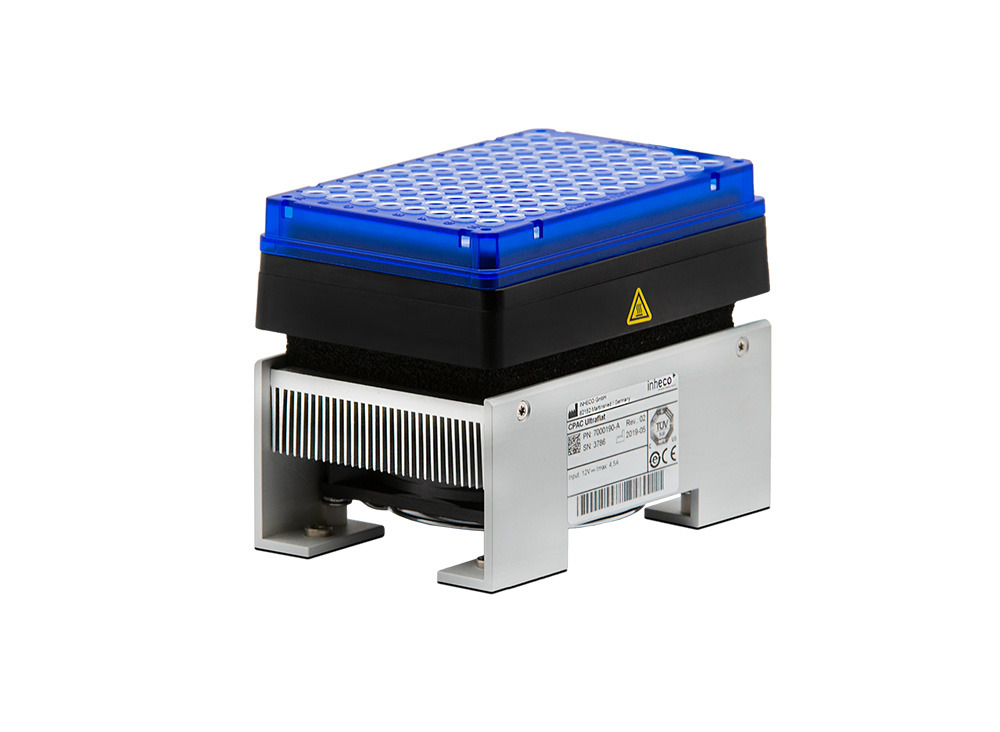

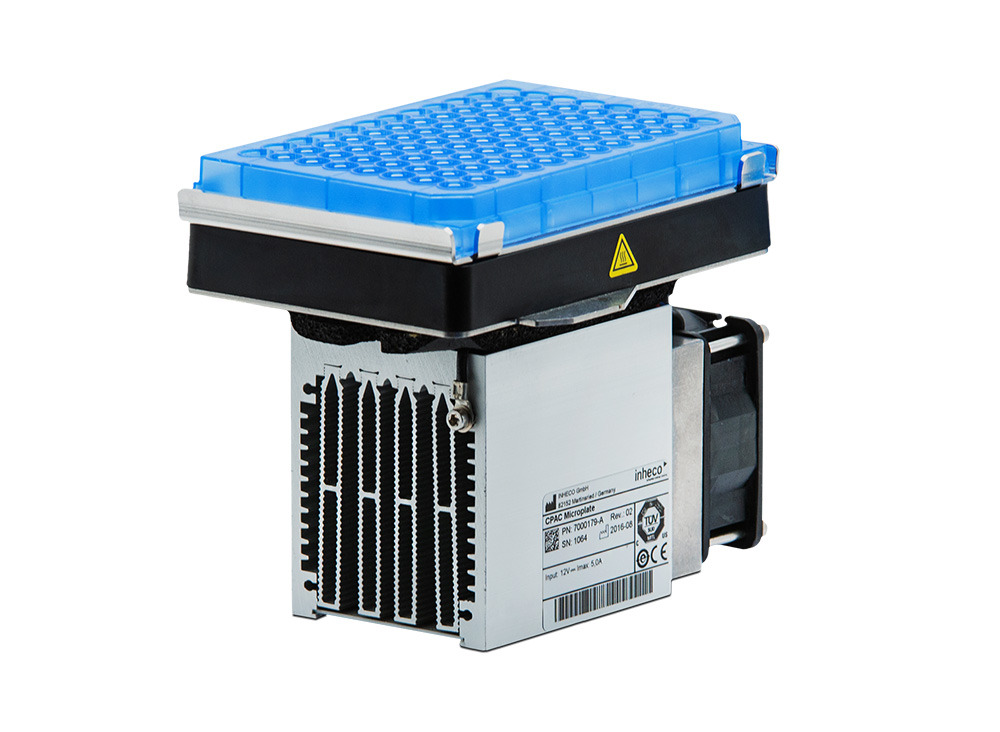

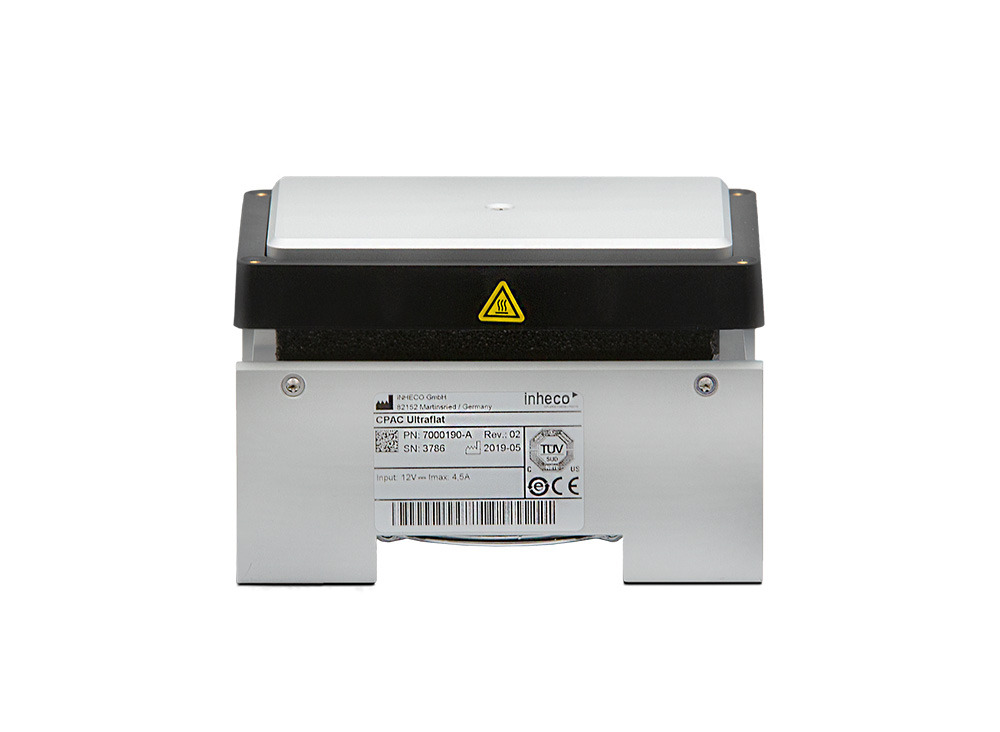

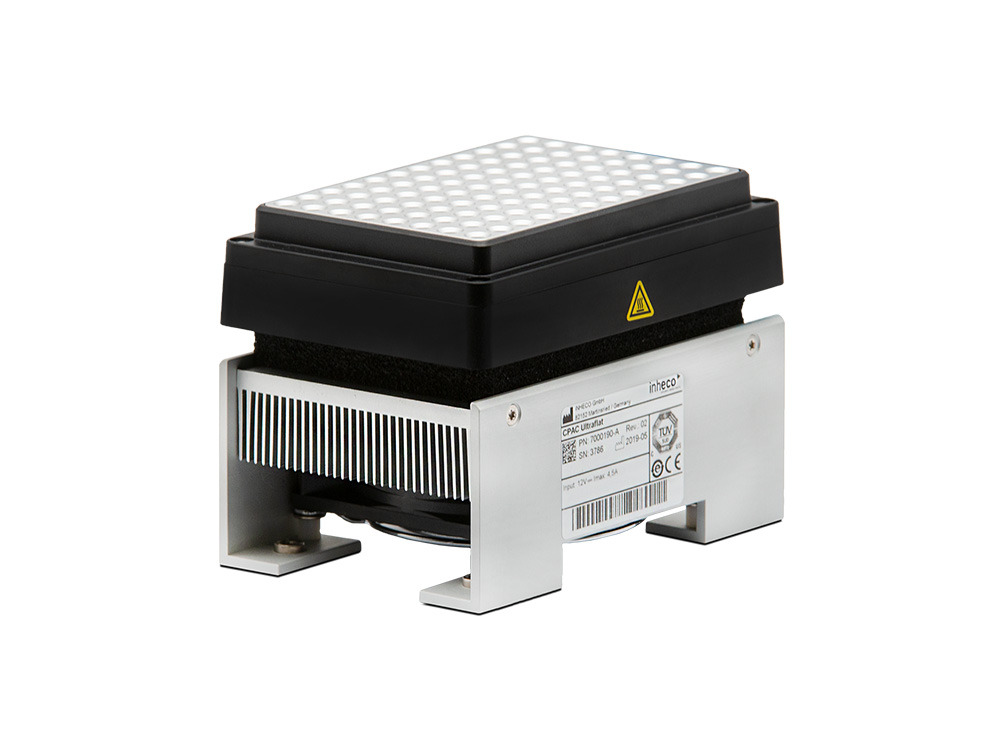

Our CPAC Ultraflat occupies only one ANSI/SLAS plate position on deck. It’s truly compact with a profile of just 80 mm. Our CPAC Microplate has the same small footprint and delivers a profile of only 14 mm with the ventilation installed under deck, providing both excellent low-profile performance and off-deck air movement.

CONSTANT HEAT OR CHANGING TEMPERATURE

Our CPAC devices come in 2 versions:

The Standard versions have one Peltier module and are optimized to maintain your samples at constant temperature up to 70 °C. Temperature range 4 °C to 70 °C, uniformity of 0.5 K, accuracy of 0.3 K.

The HT 2-TEC versions have two Peltier modules for use when alternating temperature and fast temperature changes are required in different incubation phases during a workflow. Temperature range 4 °C to 110 °C, uniformity of 0.5 K, accuracy of 0.3 K.

FLEXIBLE USE

Easy gripper access lets you comfortably use the gripper of your choice. You can use your preferred disposable with the CPAC, including vials and reservoirs – we offer over 200 adapters, manufactured in-house to ensure a perfect fit to the geometry of the disposable item, or can tailor an adapter to fit your needs.

EASY TO INTEGRATE

Control your CPAC with the separate off-deck INHECO Single TEC Control unit (STC) which further minimizes deck space while reducing noise and temperature. Or choose the INHECO Multi TEC Control unit to control up to six devices in parallel when using several INHECO products on your deck. For software integration, an API is available and CPAC models are integrated with all major deck manufacturers.

RELIABLE AND SUPPORTED

Every INHECO device is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.
